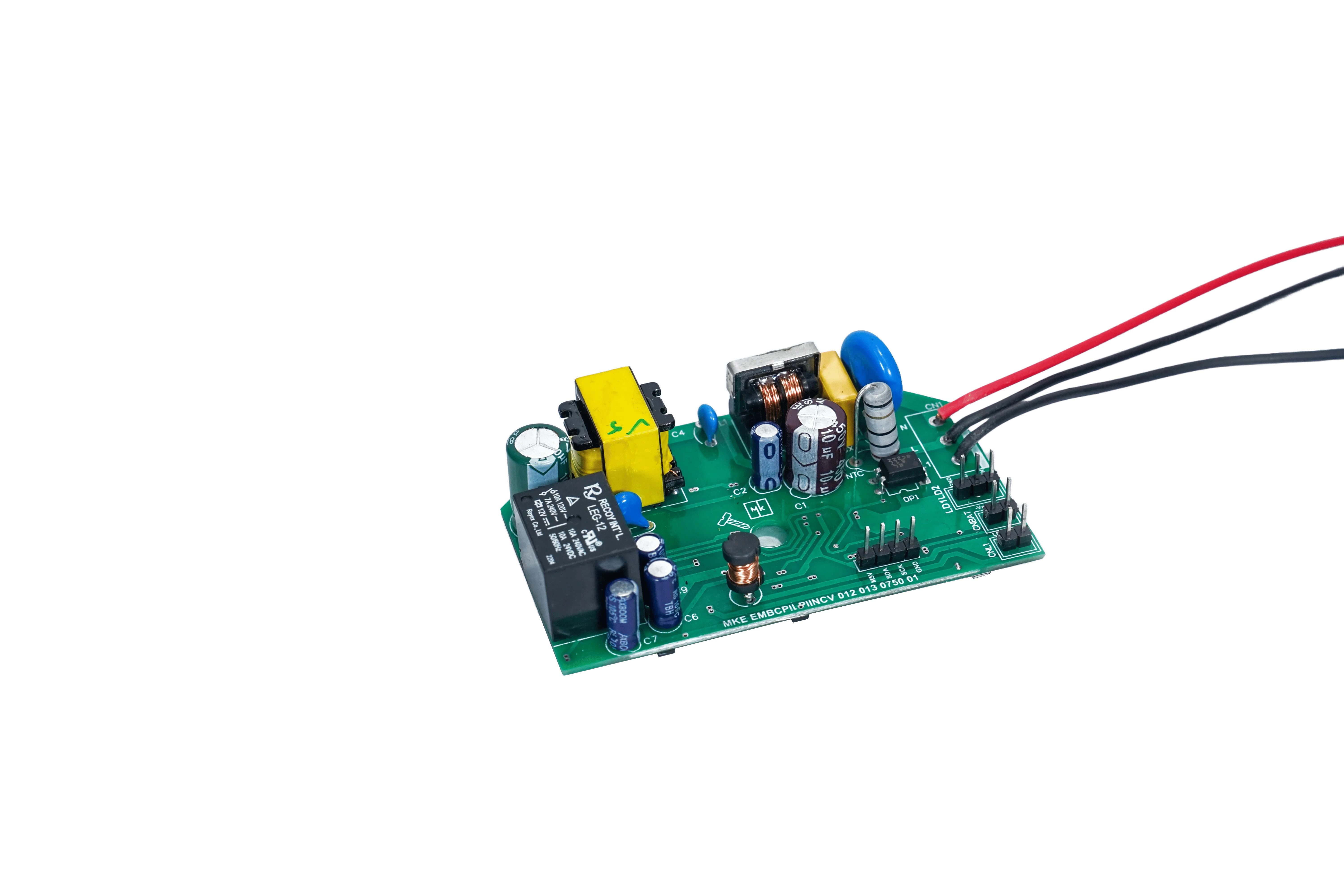

10W Emergency LED Driver

Technical Specification

Input Parameters :-

  • Input voltage – 220-240Vac
  • Input voltage range – 170 – 277Vac
  • Input power – 10W

Output Parameters :-

  • Output voltage – 12Vdc
  • LED voltage – 4.5Vdc
  • Output current – 600mA
  • Output power max – 43.2W
  • Typ. Efficiency - ≥ 83% (at max load)
Led Driver
  • Surge (DM) – 2.5KV
  • Inbuit LED Driver
  • Input terminal – 3PIN Screw type
  • Output terminal – 2PIN Wire Harness
  • Battery terminal – 2PIN Wire Harness
  • Indications terminal – 3PIN Wire Harness

Emergency LED indications :-

  • Green LED Slow Flash(1S ON 1S OFF) - Power ON, System OK and Charging
  • Green LED Stable - Power ON and Battery full charge
  • Red and Green all off - Emergency mode LED ON
  • Green and LED flash (Alternate) - Battery Test Mode
  • Red LED ON - Battery faulty, Battery not charging, Battery disconnected
