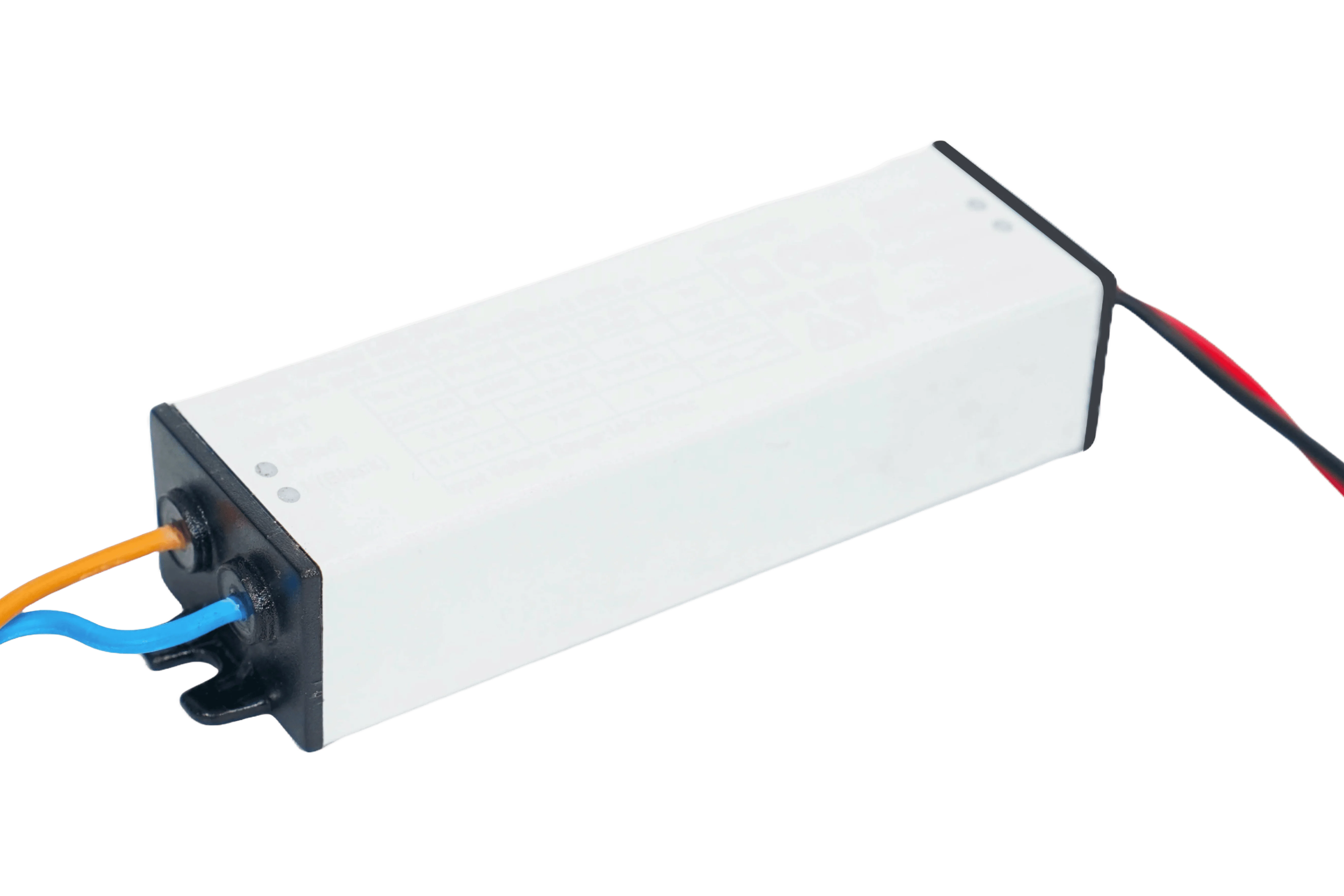

LED Driver Potted Outdoor I/P 40W O/P 55-66V/550mA
Technical Specification
Input Parameters :-
- Input voltage – 220-240Vac
- Input voltage range – 120 – 300Vac
- Input power – 40W
- Power Factor - >0.95
- Current Harmonics (total) - ≤ 10%
Output Parameters :-
- Output voltage – 55-66Vdc
- Output current – 550mA
- Output power max. – 36.0W
- Typ. Efficiency - ≥ 86% (at max load)
- Surge (DM) – 5.0KV
- Driver Box – Metal box
- Input/Output terminal – Wires sets
Protections :-
- Input high voltage AC cutoff
- Output Open and short circuit protections
- Thermal foldback features
- IP 65
Applications :-
- Street and flood lighting
