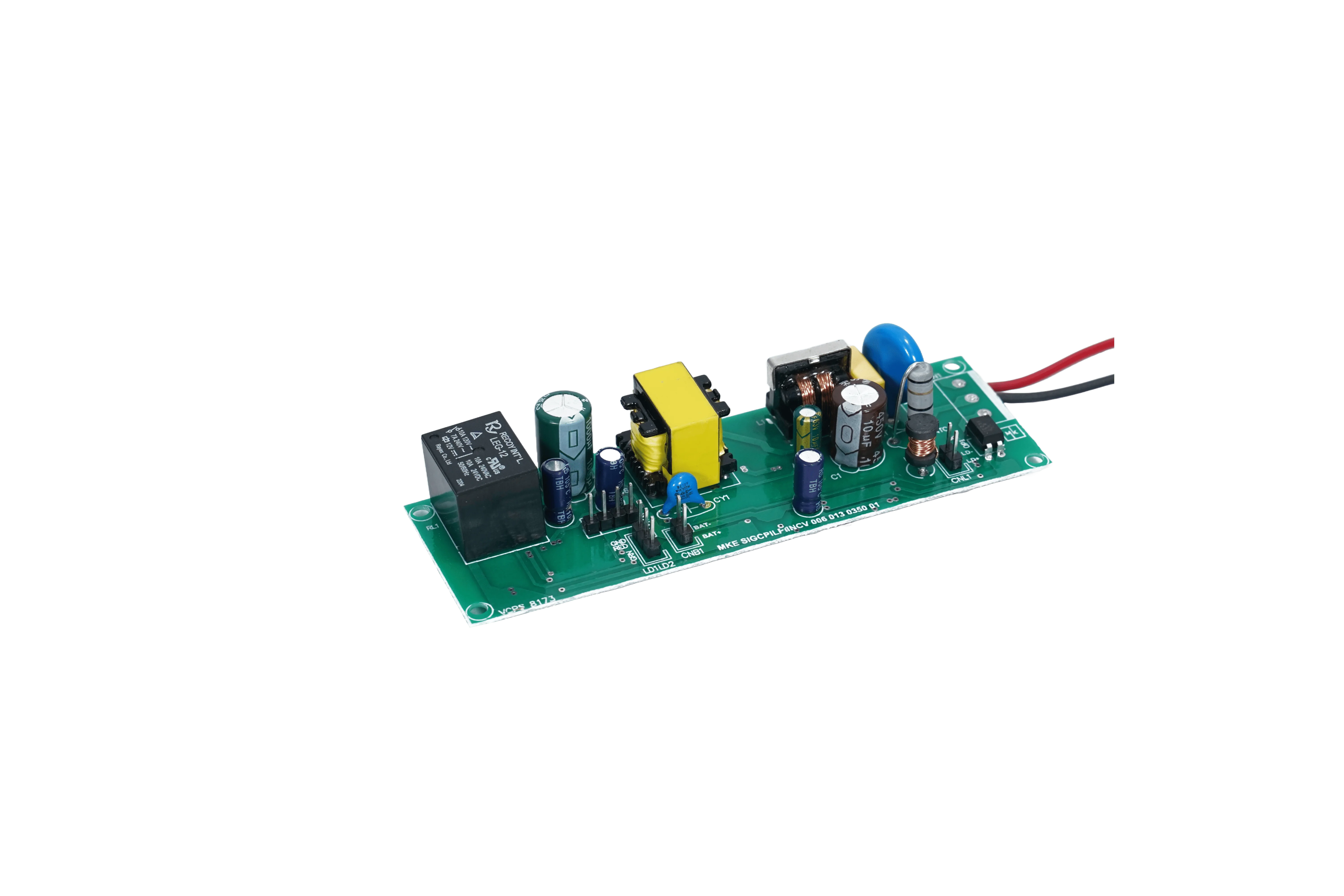

4.5W Signage LED Emergency Driver
Technical Specification
Input Parameters :-
- Input voltage – 220-240Vac
- Input voltage range – 170 – 277Vac
- Input power – 10W
Output Parameters :-
- Output voltage – 12Vdc
- LED voltage – 3.3Vdc
- Output current – 600mA
- Output power max – 43.2W
- Typ. Efficiency - ≥ 80% (at max load)
- Surge (DM) – 2.5KV
- Inbuit LED Driver
- Input terminal – 3PIN Screw type
- Output terminal – 2PIN Wire Harness
- Battery terminal – 2PIN Wire Harness
- Indications terminal – 3PIN Wire Harness
Emergency LED indications :-
- Green LED Slow Flash(1S ON 1S OFF) - Power ON, System OK and Charging
- Green LED Stable - Power ON and Battery full charge
- Red and Green all off - Emergency mode LED ON
- Green and LED flash (Alternate) - Battery Test Mode
- Red LED ON - Battery faulty, Battery not charging, Battery disconnected
