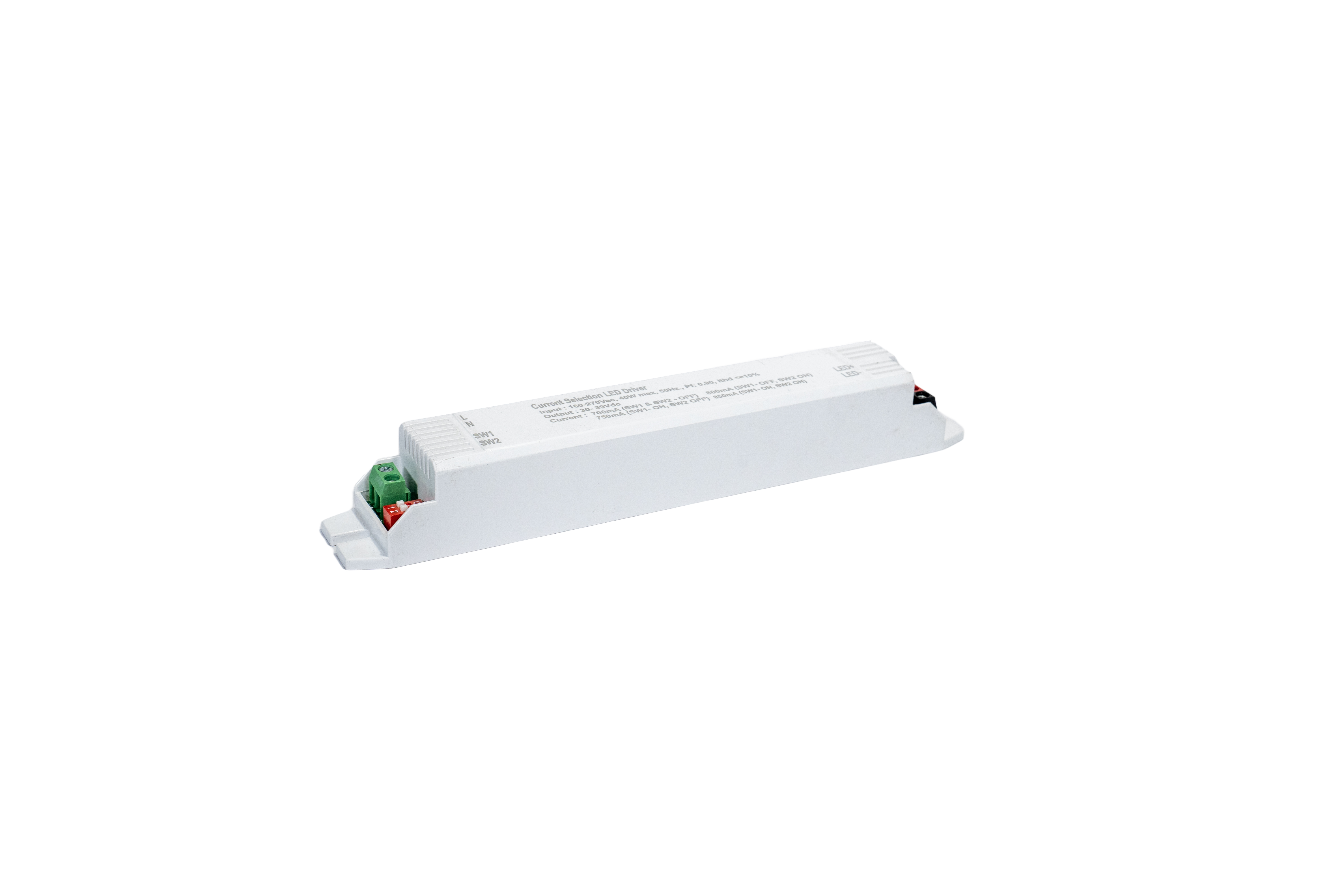

LED Driver, Linear – I/P : 25W O/P : 27-39V / 400>450>500>550mA
Technical Specification
Input Parameters :-
- Input voltage – 220-240Vac
- Input voltage range – 140 – 277Vac
- Input power – 25W
- Power factor > 0.95
- Current Harmonics (total) - ≤ 10% (at max. load)
Output Parameters :-
- Output voltage – 27-39Vdc
- Output current – 400>450>500>550mA
- Output power max. – 21.45W
- Typ. Efficiency - ≥ 86% (at max load)
- Surge (DM) – 2.5KV
- Driver Box – Plastic PC cabinet
- Terminal joints – Push type
